Titanium’s Next-Generation Surface

What’s Driving Orthopedic Implant Designs Today

Orthopedic implant designs are evolving to meet broader patient needs while OEMs look for ways to simplify portfolios. Material choices are shifting, with titanium gaining momentum for its biocompatibility and bone in-growth potential. But titanium alone is not suited for articulation and requires a surface solution.

Legacy thin coatings, while effective on limited-life, hardened instruments, and are at risk of plastic deformation, which can lead to edge wear, erosion, and delamination when applied to a soft substrate. PVD coatings were not designed for the purpose of a bearing surface on titanium. After many years of clinical use, the market has identified the need for an alternate solution.

ALTITUDE® applies modern materials science to deliver a purpose-built bearing surface for titanium, enabling durable performance.

The Benefits of ALTITUDE®
Improved Biocompatibility

Design next-generation implants using materials with known biocompatability.

  • Enable alternatives to cobalt-chromium (CoCr)
  • Options for titanium and other substrates
  • Known performance of ceramic as a bearing surface
Stronger, Resilient Construct

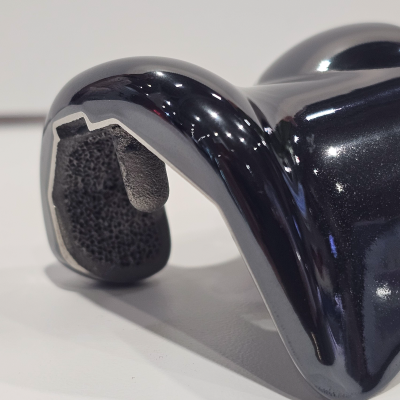

Built to last with Orchid’s proprietary AEGIS edge-protection.

  • Prevent chipping at implant edges
  • Reduce delamination risks
  • Resists scratching and burnishing
Reduced Wear, Longer Implant Life

Proven to outperform uncoated titanium and CoCr implants.

  • Lower wear rates in testing
  • Harder, thicker ceramic coating (100–200 μm)
  • Extend implant lifespan with the younger, more active patient in mind

ALTITUDE® vs. CoCr Characteristics

  ALTITUDE® CoCr ASTM F75
Coating Thickness (μm) 100–200 N/A
Hardness (HV0.3) 750 646
Roughness Ra (μm) 0.05 0.05
2M-Cycle UHMWPE Wear (mg) 10 18
Tensile Strength (MPa) >50 N/A
Shear Strength (MPa) >45 N/A

Properties shown are typical values. Actual performance may vary depending on implant size and geometry.

Evolve Titanium Implant Designs

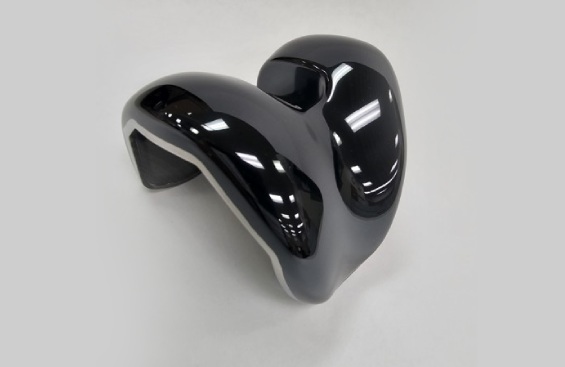

ALTITUDE® Ceramic Coating & Bearing Surface Solution
